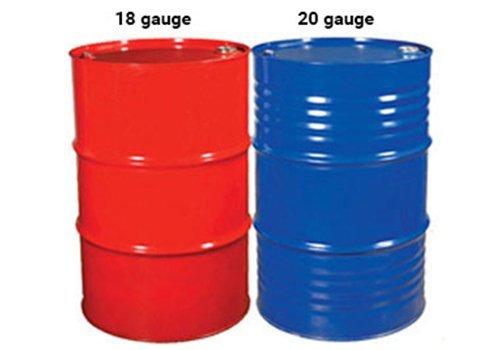

200/210 litres capacity close mouth barrel with multi corrugation. Internally Plain or Epoxy Coated and Externally Painted to your Colour.
Tare Weight : 18 Kgs + 0.5Kg
Dimensions : | |
---|---|
Height | 883 + 3 mm |
Diameter | 584 mm (max) |
Opening | 50mm & 20mm |

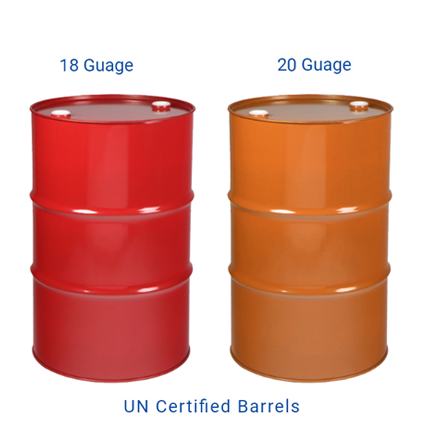

200/210 litres capacity close mouth barrel. Internally Plain or Epoxy Coated and Externally Painted to your Colour.
Tare Weight : 22 Kgs + 0.5K
Dimensions : | |
---|---|
Height | 883 + 3 mm |
Diameter | 584 mm (max) |
Opening | 50mm & 20mm |
200/210 litres capacity close mouth barrel with multi corrugation. Internally Plain or Epoxy Coated and Externally Painted to your Colour.
Tare Weight : 18 Kgs + 0.5Kg
Dimensions : | |
---|---|
Height | 890 + 3 mm |
Diameter | 584 mm (max) |
Opening | 50mm & 20mm |
200/210 litres capacity close mouth barrel. Internally Plain or Epoxy Coated and Externally Painted to your Colour.
Tare Weight : 22 Kgs + 0.5Kg
Dimensions : | |
---|---|
Height | 890 + 3 mm |
Diameter | 584 mm (max) |
Opening | 50mm & 20mm |

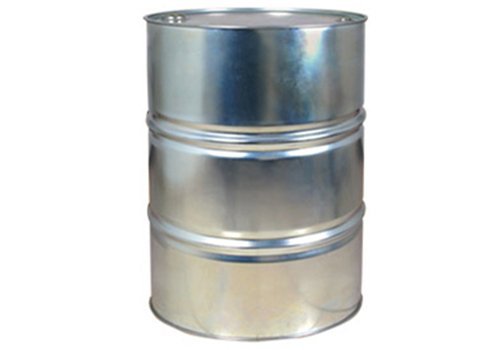

200/210 litres capacity close mouth barrel. Internally and Externally Zinc Plated.
Tare Weight : 18 Kgs + 0.5Kg
Dimensions : | |
---|---|
Height | 883 + 3mm |
Diameter | 584 mm (max) |
Opening | 50mm & 20mm |
200/210 litres capacity close mouth barrel. Internally and Externally Zinc Plated.
Tare Weight : 22 Kgs + 0.5Kg
Dimensions : | |
---|---|
Height | 883 + 3mm |
Diameter | 584 mm (max) |
Opening | 50mm & 20mm |

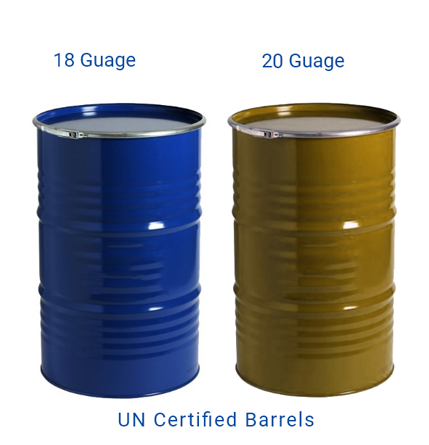

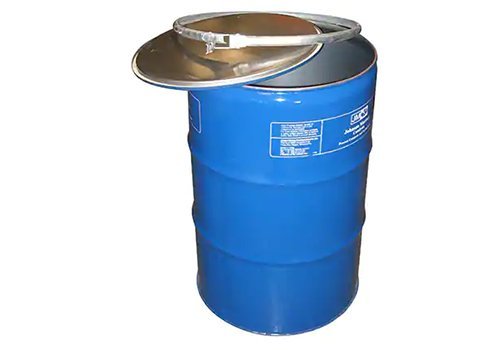

160/180 Kgs. Capacity Open Mouth Barrel. Internally Plain or Epoxy Coated and externally painted to your Colour.
Tare Weight : 18 Kgs + 0.5Kg
Dimensions : | |
---|---|
Height | 890 + 3mm |
Diameter | 584 mm (max) |
Opening | Full Open Top with removable lid & GI Lever type Ring. |
160/180 Kgs. Capacity Open Mouth Barrel. Internally Plain or Epoxy Coated and externally painted to your Colour.
Tare Weight : 22 Kgs + 0.5Kg
Dimensions : | |
---|---|
Height | 890 + 3mm |
Diameter | 584 mm (max) |
Opening | Full Open Top with removable lid & GI Lever type Ring. |
200 litres Capacity close mouth barrel fitted with HM-HDPE Liner inside & externally painted to your colour.
Tare Weight : 25.5 Kgs + 0.5 Kg, 27.5 Kgs + 0.5 kg
Dimensions : | |
---|---|
Height | 890 + 3mm |
Diameter | 584 mm (max) |
Liner Type | HM-HDPE |
Liner Weight | 3.5 Kg or 5.5 Kg |
Opening | 2 opening of 50mm |
Vent | 1 opening of 20mm at bottom |
Inside coating = Food grade Lacquer (Gold lacquer coating) & absence of bulging, Twisting rest, water & foreign particles Dust etc. inside drums.
Drum capacity = 210 kg minimum
Sheet thickness = 0.90 +- 0.10 mm
Type of ring = Lever Type along with ring lock.
Thickness of ring = 1.25 +-1 mm.
Tare weight of empty drum = 16.900 Kg
Paint shade RAL 3000
Cap seal (2” and ¾”)
With Logo = ASENOR L
Along with Food Grade Certificate
Dimensions : | |
---|---|
Height | 890 + 3mm |
Diameter | 584 mm (max) |
Liner Type | HM-HDPE |
Liner Weight | 3.5 Kg or 5.5 Kg |
Opening | 2 opening of 50mm |
Vent | 1 opening of 20mm at bottom |
